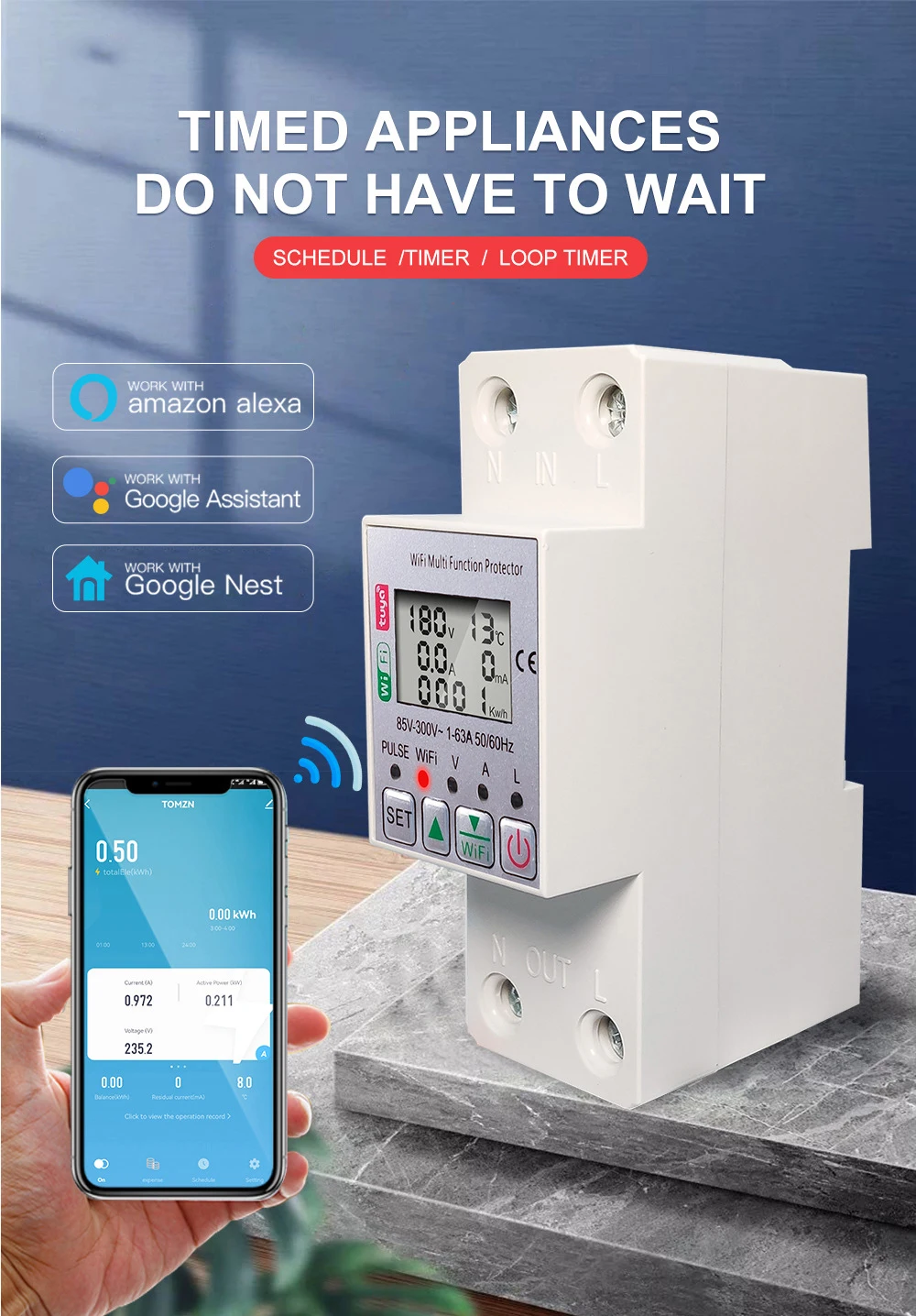

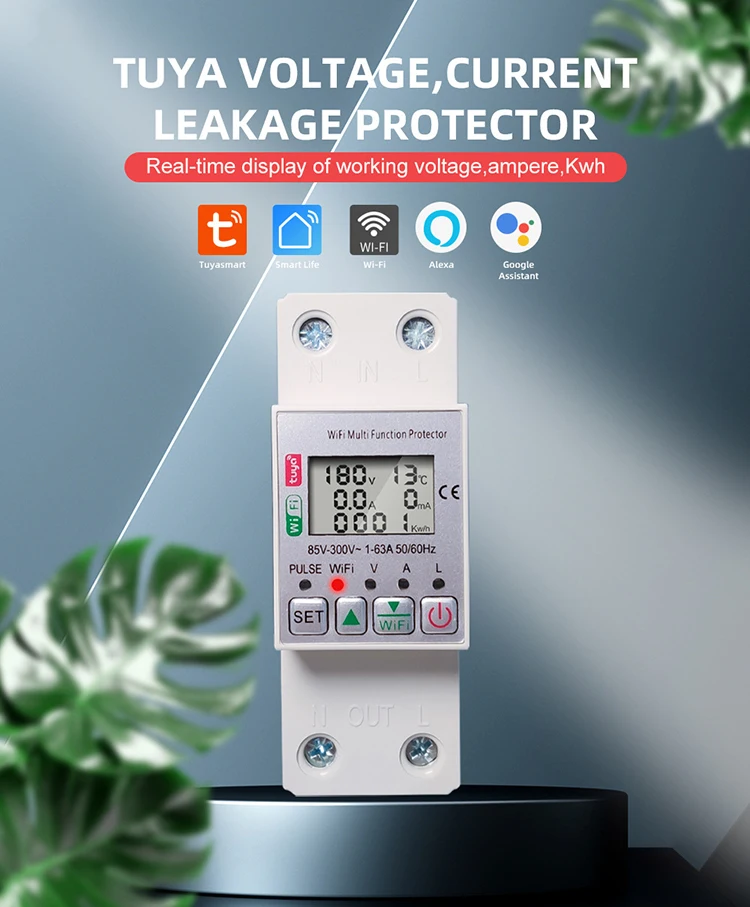

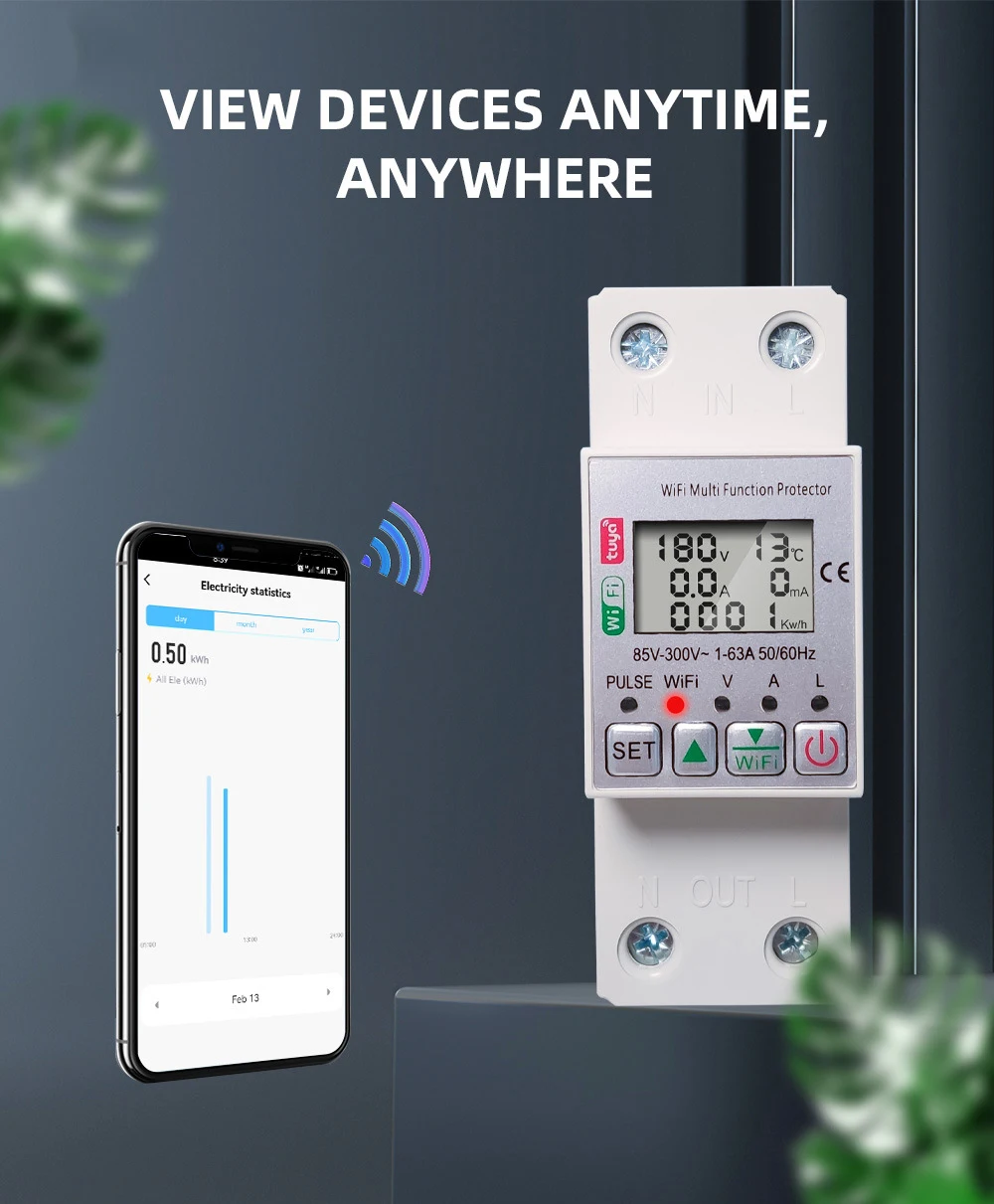

TUYA WiFi Smart Circuit Earth Leakage Over Under Voltage Protector Breaker Energy Power kWh Multi Function Meter
$18.00
描述
|

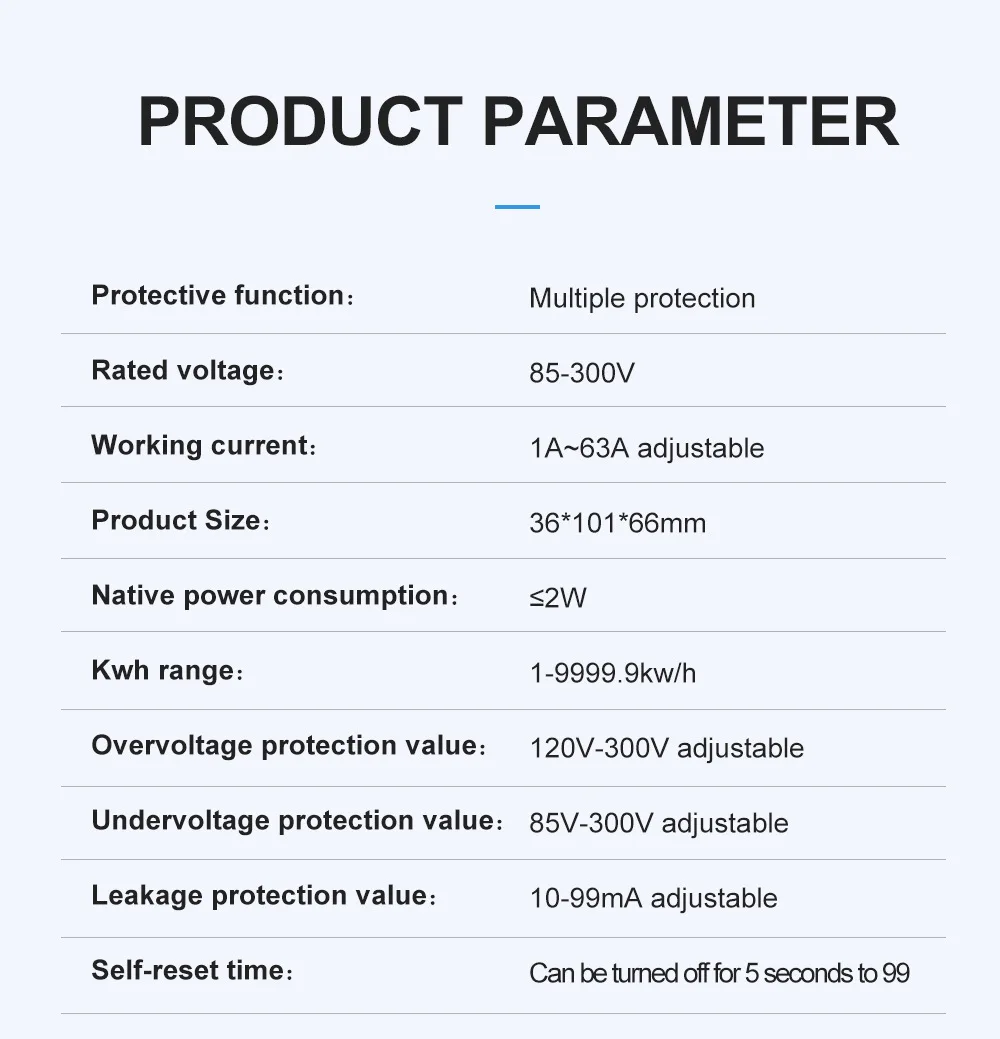

Rated Supply Voltage
|
AC 220V
|
|
Operation Voltage Range
|
AC80v-400v(single phase)
|
|
Rated Frequency
|
50/60Hz
|
|

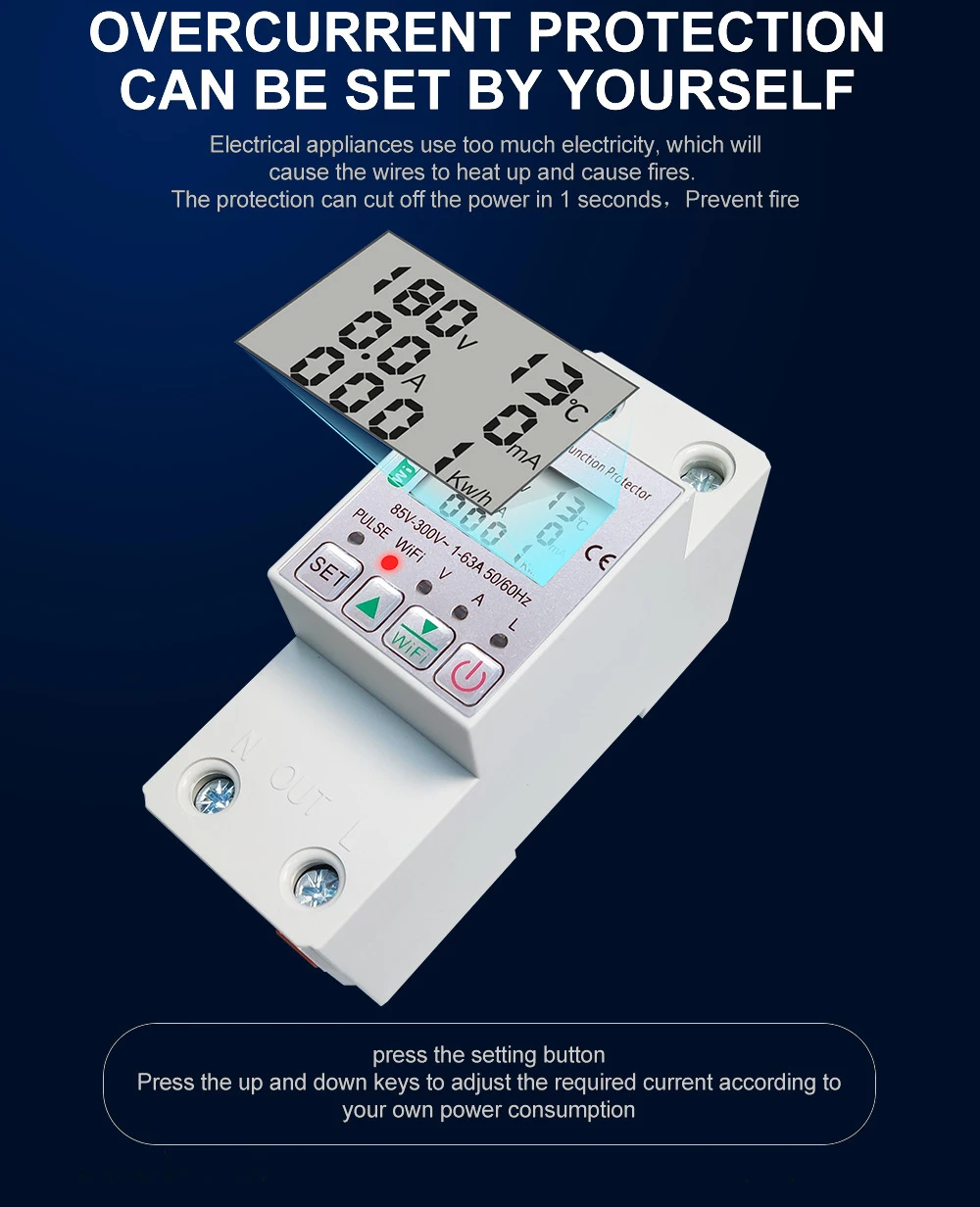

Electric Current (>A)setting range
|
1-63A
|
|

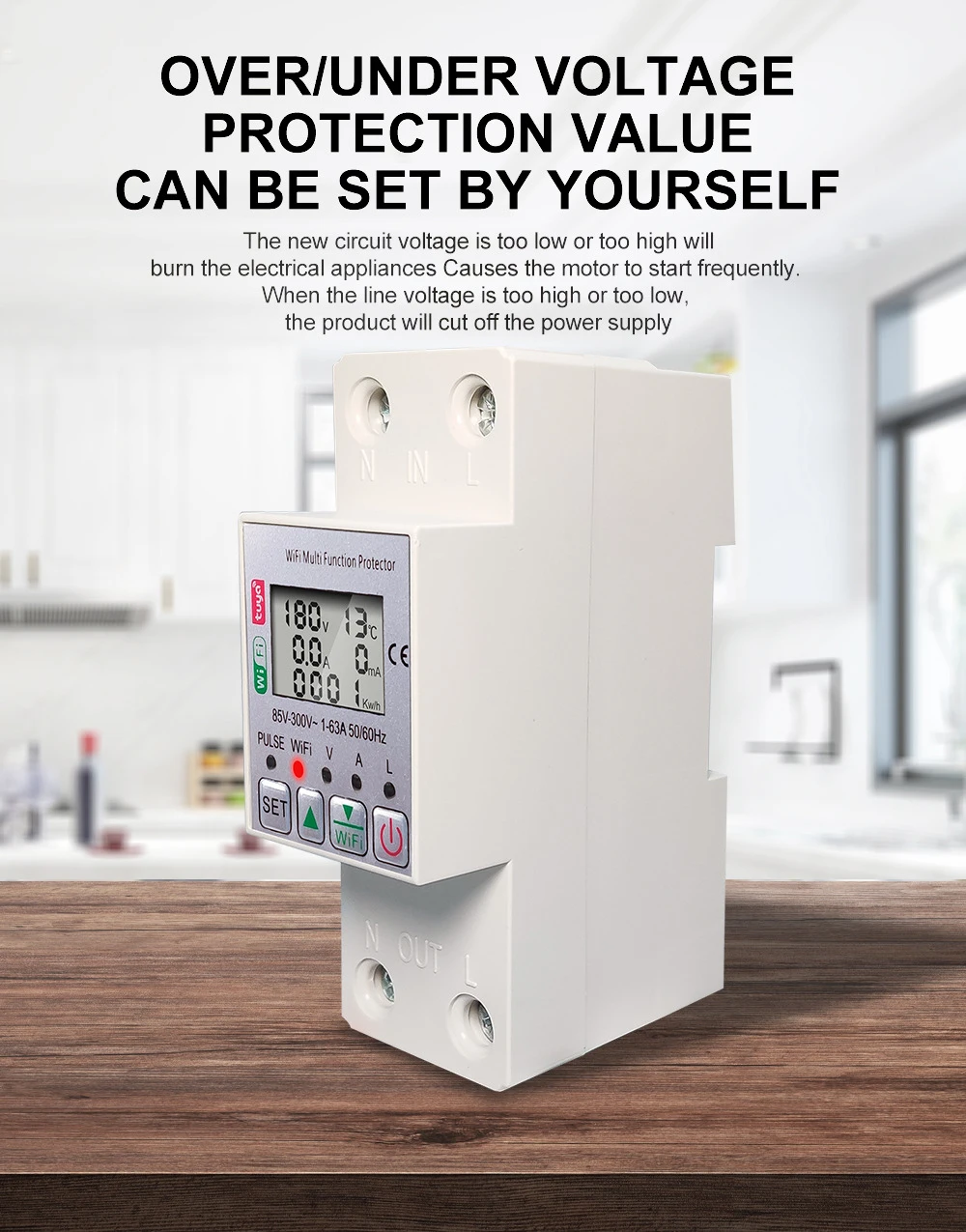

Overvoltage (>U) setting range
|
250-300V (adjustable)
|
|
Undervoltage(
|
150-190V (adjustable)
|
|

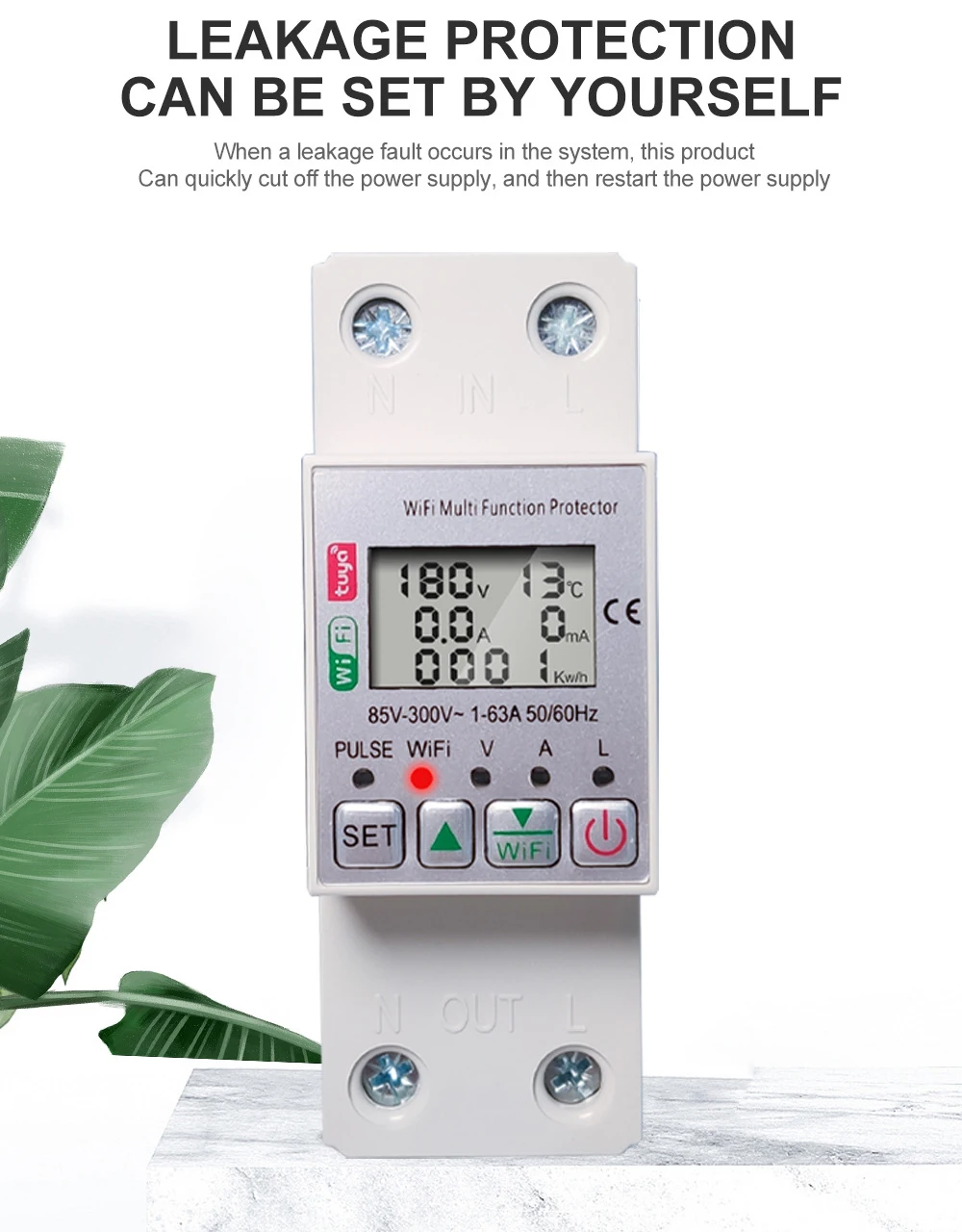

Electric Leakage Protection
|
10-100mA(This feature can be turned off)
|
|
Error
|
2%
|
|
>U and
|
0.5s
|
|
Reset/Start Delay
|
5s-90s
|
|

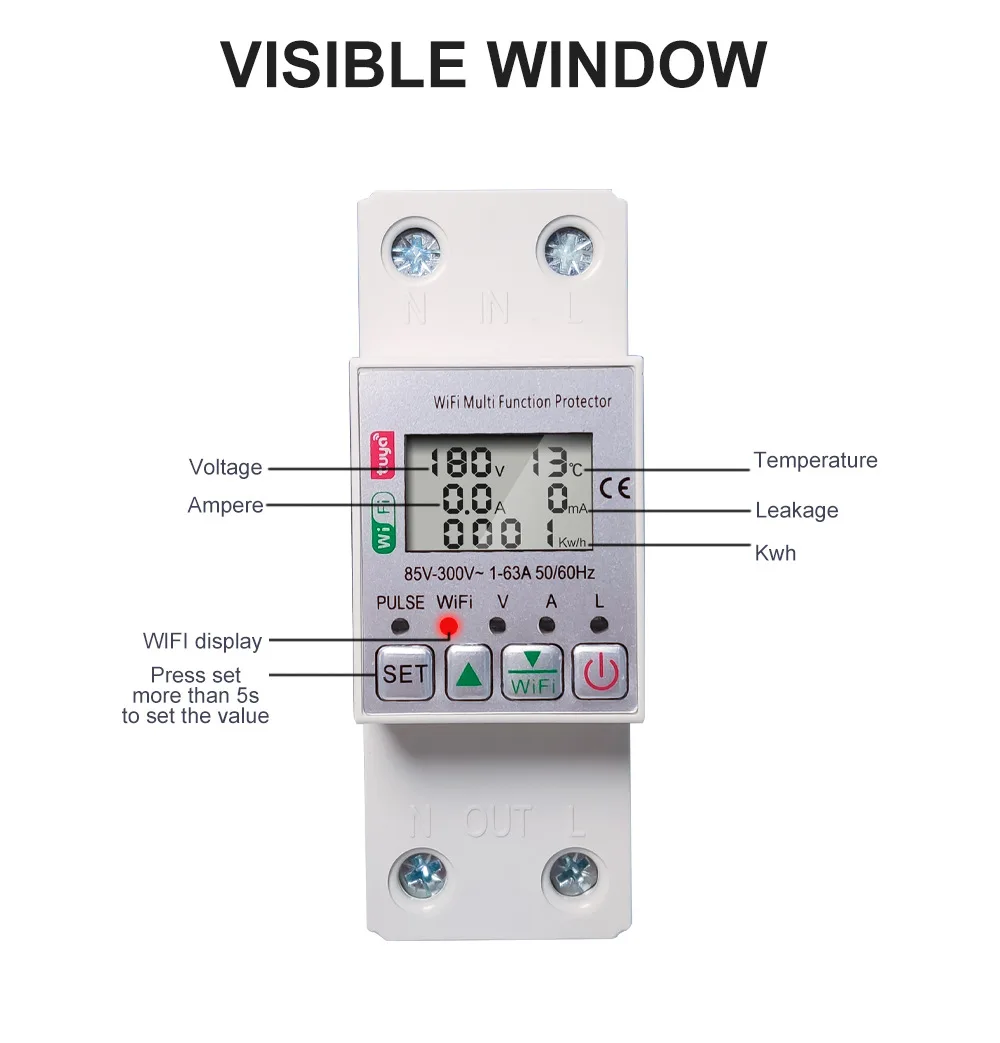

Voltage Measurement Accuracy
|
l%(Not exceeding 1% of the overall range)
|
|
Rated Insulation Voltage
|
400V
|
|
Output Contact
|
1NO
|
|
Electrical Life
|
105
|
|
Mechanical Life
|
106
|
|
Protection Degree
|
IP20
|
|
Pollution Degree
|
3
|
|
Altitude
|
≤2000m
|
|
Operating Temperature
|
(-30°C^70°C
|
|
Humidity
|
<50% at40°C (without condensation)
|
|
Storage Temperature
|
-30°C~70°C
|
|

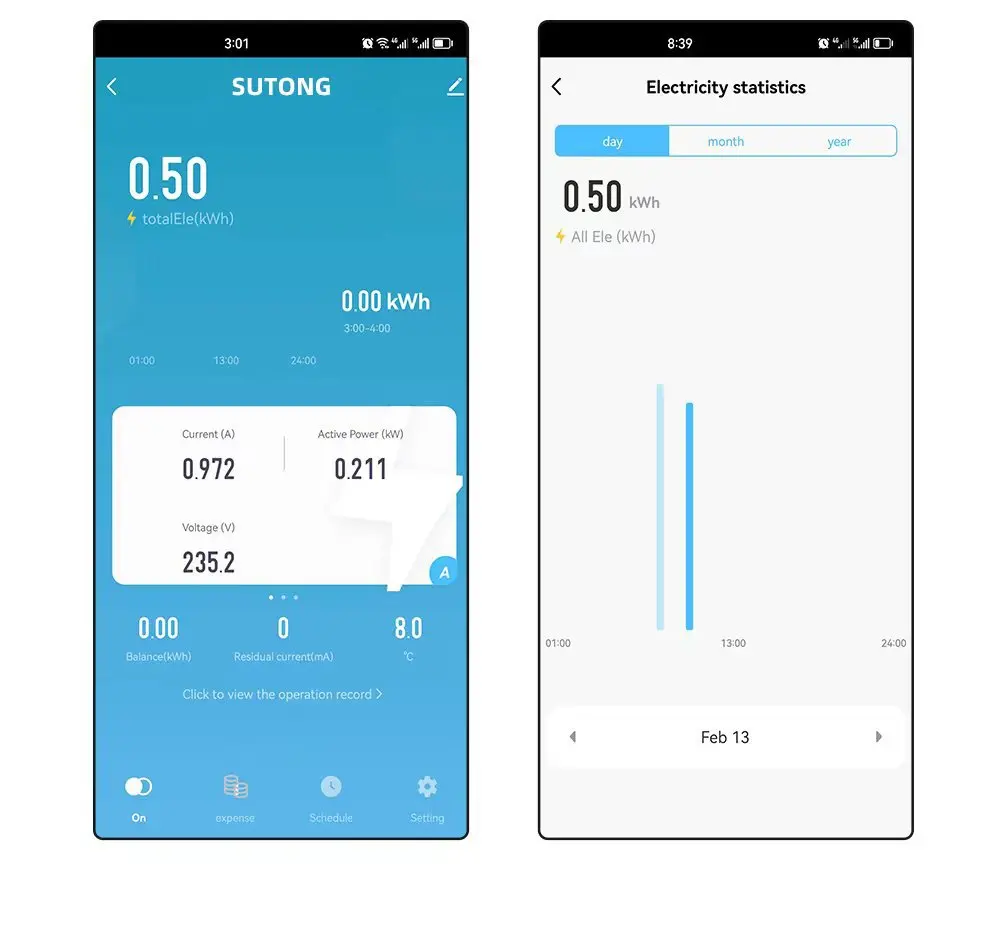

Power Display Range
|
0-99999.9kw/h
|
其他信息
| 重量 | 0.2 公斤 |
|---|---|

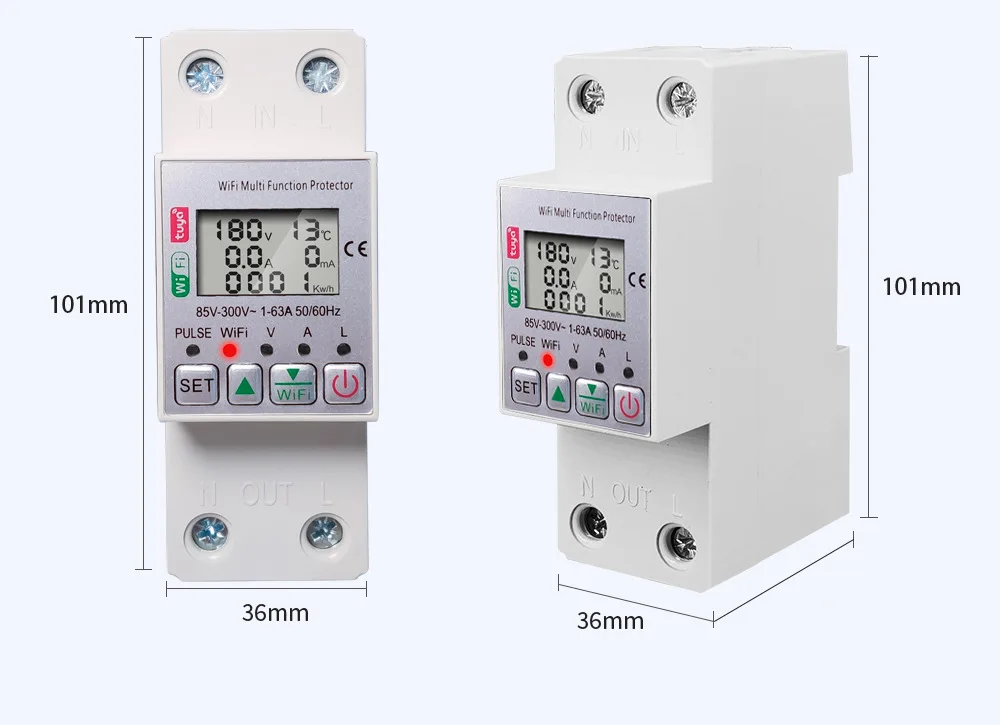

| 尺寸 | 15 × 8 × 4 厘米 |
| Brand |
Msmart |
| Network |
WiFi |
| Voltage |
100-240V |
| Usage |
AC Display Multifunctional Voltage Ammeter |
| Current |
80A |
